The 6SR60 6" Waterproof Copper Wire Extra-large Flow Borehole Submersible Pump is designed to meet all your pumping needs with utmost efficiency and reliability.With its 6" size, the 6SR60 is perfect for deep well applications, ensuring a steady water supply even in the most challenging conditions.
Applications :
Provides water supply from wells or reservoirs for various use cases.
Caters to domestic, civil, and industrial applications with stable performance.
Supports garden maintenance and agricultural irrigation operations efficiently.
1、Its waterproof copper wire construction guarantees durability and long-lasting performance, making it a valuable investment for both residential and commercial use.
2、One of the standout features of this submersible pump is its extra-large flow capacity. The 6SR60 is engineered to deliver an impressive flow rate, allowing for efficient water transfer and distribution. Whether you need to pump water for irrigation, industrial purposes, or household use, this pump will exceed your expectations.
3、Not only does the 6SR60 offer exceptional performance, but it also boasts a professional and sleek design. Its robust build ensures stability and easy installation, while the high-quality materials used in its construction guarantee a reliable and safe operation.
4、When it comes to choosing a submersible pump that combines power, durability, and efficiency, the 6SR60 6" Waterproof Copper Wire Extra-large Flow Borehole Submersible Pump is the ideal choice. Invest in this exceptional product and experience unparalleled performance for all your pumping needs.
Operating Conditions:
Maximum fluid temperature up to +35℃
Maximum sand content : 0.25%
Minimum well diameter : 6"
Rewindable electric motor
Voltage:
Single-phase: 220-240V/50Hz
Three-phase: 380-415V/50Hz
Starting methods:
①Direct start (using 1 cable)
②Star-delta start (using 2 cables)
Equipped with:
- Start control box or digital auto-control box
- NEMA dimension standards
- Curve tolerance according to ISO 9906
Options on request :
Special mechanical seal
(according to our general sales conditions)
CE Certificate :
Components and Material :
|
Components |
Material |
|
Pump external casing |
Stainless Steel |
|
Delivery casing |
Cast-iron ASTM NO.30 |
|
Suction lantern |
Cast-iron ASTM NO.30 |
|
Diffuser |
Plastic.PC & AISI 304 SS |
|
Impeller |
Plastic.PC |
|
Shaft |
AISI 304 SS |
|
Shaft coupling |
AISI 304 SS |
|
Wear ring |
AISI 304 SS |
|
Motor external casing |
Stainless Steel |
|
Top chock |
|
|
Cast-iron ASTM NO.30 |
|
|
Bottom support |
Cast-iron ASTM NO.30 |
|
Seal |
NBR Graph-SIC/TC |
|
Shaft |
AISI 304 SS-ASTM 5140 |

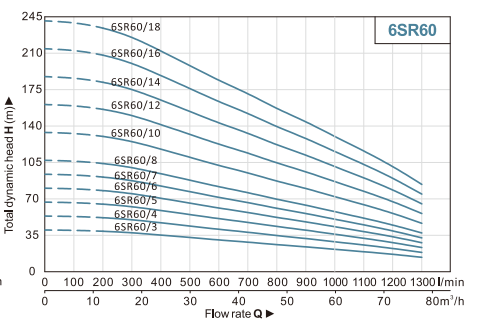

| MODEL | MOTOR | DELIVERY n≈2850/min | ||||||||||||||||
| 1~ 220-240V |
3~ 380-415V |
KW | HP | Q（m³/h） Q（l/min） |
0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | 72 | 78 |
| 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | |||||
| 6SRM60/3 | 6SR60/3 | 5.5 | 7.5 | H(m) | 41 | 40 | 39 | 37 | 35 | 33 | 31 | 28 | 26 | 24 | 21 | 19 | 17 | 14 |
| - | 6SR60/4 | 7.5 | 10 | 54 | 53 | 52 | 50 | 47 | 44 | 41 | 38 | 35 | 32 | 29 | 26 | 22 | 19 | |
| - | 6SR60/5 | 9.2 | 12.5 | 68 | 67 | 65 | 62 | 59 | 55 | 51 | 47 | 43 | 40 | 36 | 32 | 28 | 23 | |
| - | 6SR60/6 | 11 | 15 | 81 | 80 | 78 | 75 | 70 | 66 | 61 | 57 | 52 | 48 | 43 | 38 | 33 | 28 | |
| - | 6SR60/7 | 13 | 17.5 | 95 | 93 | 91 | 87 | 82 | 77 | 72 | 66 | 61 | 56 | 50 | 45 | 39 | 33 | |
| - | 6SR60/8 | 15 | 20 | 108 | 107 | 104 | 100 | 94 | 88 | 82 | 76 | 69 | 64 | 57 | 51 | 44 | 37 | |
| - | 6SR60/10 | 18.5 | 25 | 135 | 133 | 130 | 124 | 117 | 110 | 102 | 94 | 87 | 79 | 72 | 64 | 56 | 47 | |
| - | 6SR60/12 | 22 | 30 | 162 | 160 | 156 | 149 | 141 | 132 | 123 | 113 | 104 | 95 | 86 | 77 | 67 | 56 | |
| - | 6SR60/14 | 26 | 35 | 189 | 187 | 182 | 174 | 164 | 154 | 143 | 132 | 121 | 111 | 100 | 89 | 78 | 65 | |
| - | 6SR60/16 | 30 | 40 | 216 | 213 | 208 | 199 | 188 | 176 | 164 | 151 | 139 | 127 | 115 | 102 | 89 | 75 | |
| - | 6SR60/18 | 37 | 50 | 243 | 240 | 234 | 224 | 211 | 198 | 184 | 170 | 156 | 143 | 129 | 115 | 100 | 84 | |
